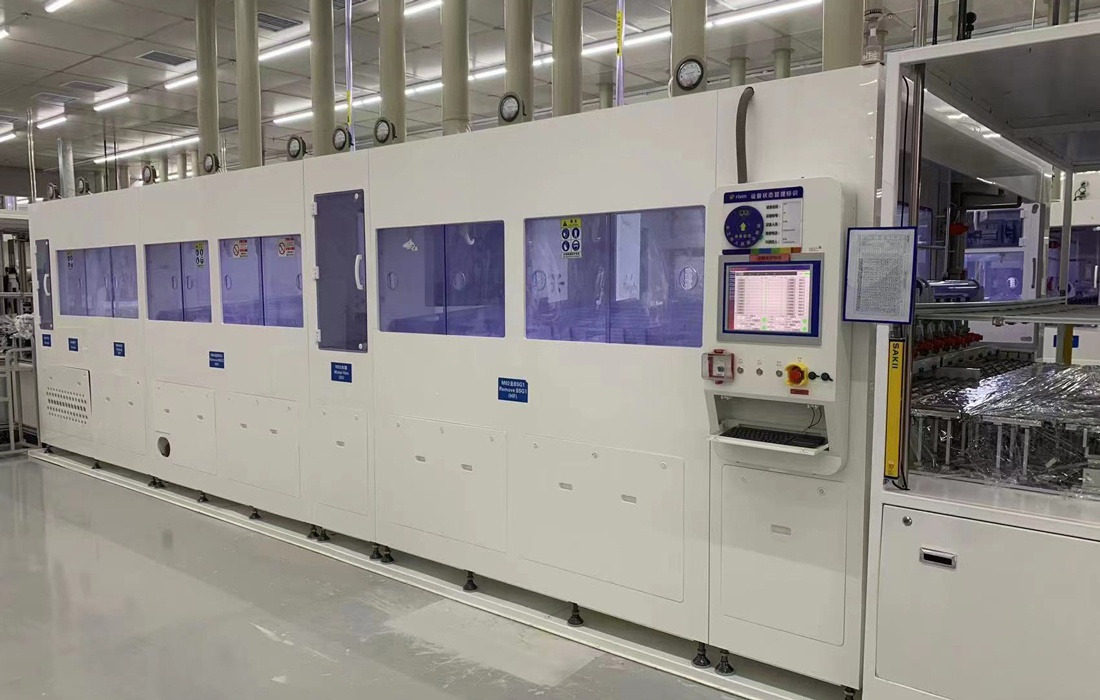

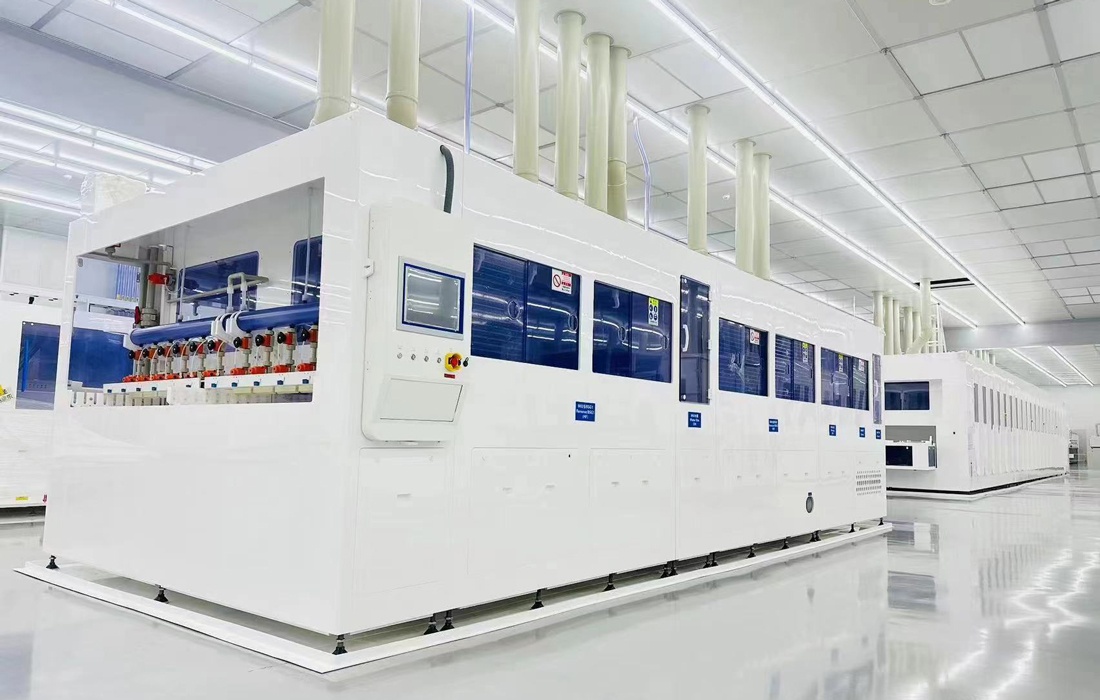

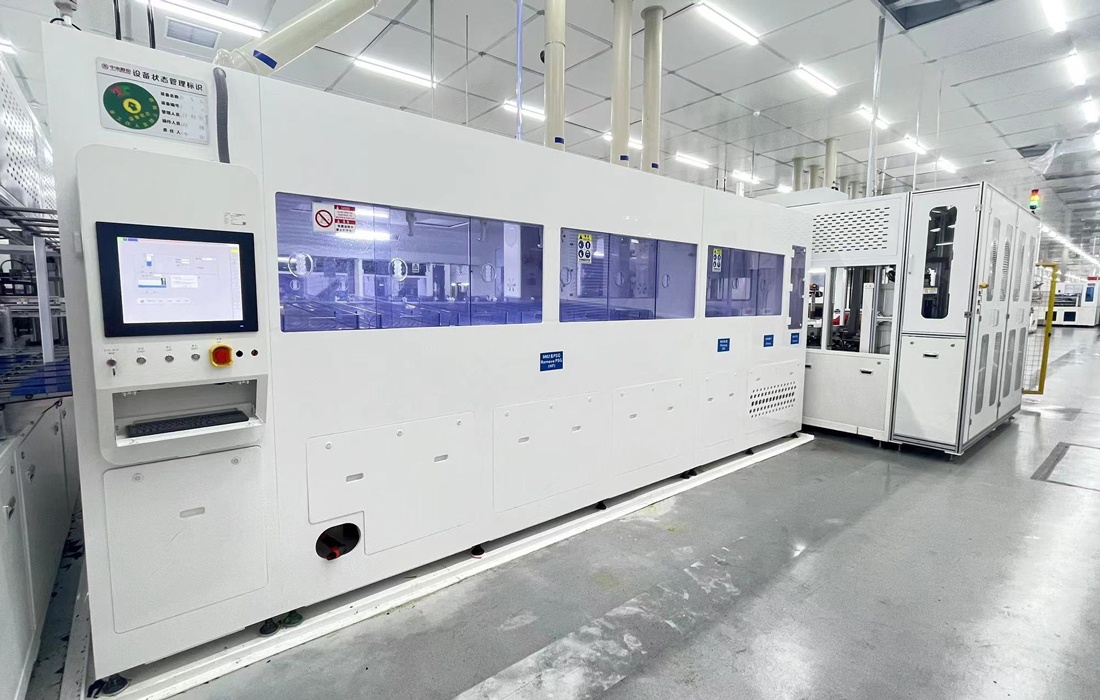

Inline BSG Removal Equipment
Product Name: Inline BSG Removal Equipment
Function: Removing Boron Silicate Glass (BSG) from Photovoltaic Solar Cells
Process Flow: Water Film→HF→Water Film→HF→Rinse→Drying
Features: High-speed precision liquid-carrying etching roller to avoid under-etching or over-etching at the edges; precise water film control to ensure complete coverage without dripping; real-time monitoring of solution conductivity to ensure etching process stability; stable production at 4.5m/min, less friction, longer consumable life.
|
Product Name |
Inline BSG Removal Equipment |
|
Model |
KSBSG |
|
Route Application |
TOPCON、XBC |
|
Function |
Removing Boron Silicate Glass (BSG) from Photovoltaic Solar Cells |
|
Process Flow |
Water Film→HF→Water Film→HF→Rinse→Drying |
|
Compatible Wafer |
12 lanes for 182mm wafer; 10 lanes for 210/230mm wafer, compatible with various sizes wafers |
|
Lane Number |
182mmx182mm: 12 lanes (6+6 configuration); 210-230mm: 10 lanes (5+5 configuration) |
|
Operation Speed |
2-5m/min Adjustable |
|
Capacity |
182mm: ≥16000 pcs/hour; 210mm: ≥12500 pcs/hour |
|
Breakage Rate |
Breakage Rate <0.01% (Silicon wafer thickness ≥130um) |
|
Power Consumption/ Voltage |
~33KW/380V |
|
Features |
High-speed precision liquid-carrying etching roller to avoid under-etching or over-etching at the edges; precise water film control to ensure complete coverage without dripping; real-time monitoring of solution conductivity to ensure etching process stability; stable production at 4.5m/min, less friction, longer consumable life. |
